1. aluminum trim coil
aluminum trim coil

aluminum trim coil

we offers a variety of alloy aluminum trim coil in more than 10 different colors. We paint high-quality aluminum coil surfaces with one of the strongest finishes in the industry, backed by an industry-leading warranty

  • TEL

    +86 13598417520

  • email

    wade@haomeicn.com

  • PDF Download

    PDF Download

Product introduction

Trim coil is a thin sheet of aluminum covered with a water-based coating used to cover the exposed wood trim on a home. It can be bent and shaped on the job site to create a custom fit. Since it requires virtually no maintenance and won’t chip, flake or scratch, it’s the perfect product for exterior finishing.

The aluminum trim coil thickness ranges from 0.08 to 4mm in the market. The fact is, the thickness of an aluminium trim coil consists of at least two layers. Some rolls with both sides coated have three layers. The thickness includes that of an aluminium roll and that of its coating layer

aluminum trim coil

Specifications

Alloy 1000,3000,5000,8000 series
Temper O, T4, T6, T651
Width 100mm-3000mm Length custom
Thickness 0.2mm-8mm

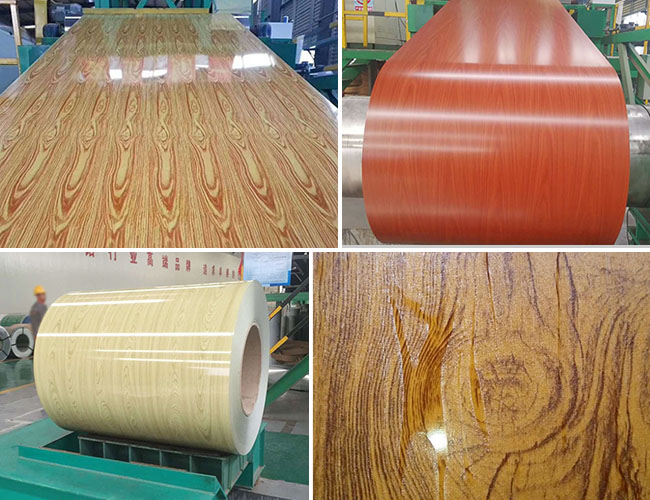

Surface Treatment

Trim coil aluminum have a strong and flexible finish including smooth, PVC, wood grain and more. Coated on both sides to resist cracking, chipping and peeling, it can withstand the harshest environments and maintain a virtually maintenance-free aesthetic for a lifetime.
No matter the project, we have a trim coil aluminum that can meet almost all of your needs.

Application

Aluminum trim coils are designed for residential and light commercial applications, providing low maintenance coverage for exterior trim surfaces. Examples include bending and wrapping aluminum trim coils around wood shell trim on windows, flashings, entry doors, and garage doors.

Aluminum trim coil can be used in a variety of applications, but it’s primarily used where wood is exposed to the elements as a way to add protection and increase the longevity of the building. Trim coil can be used to create all of the following — plus more:
Drip edge to protect the edge of the roof
Fascia that extends around the perimeter of the home and up the rake boards
Frieze boards
Post wraps
Window and door trim
Roof flashing

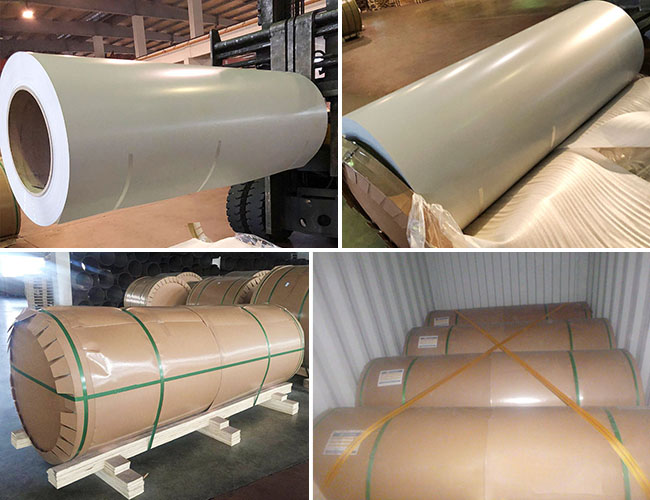

Packaging and Shipping

aluminum trim coil
