Product Introduction

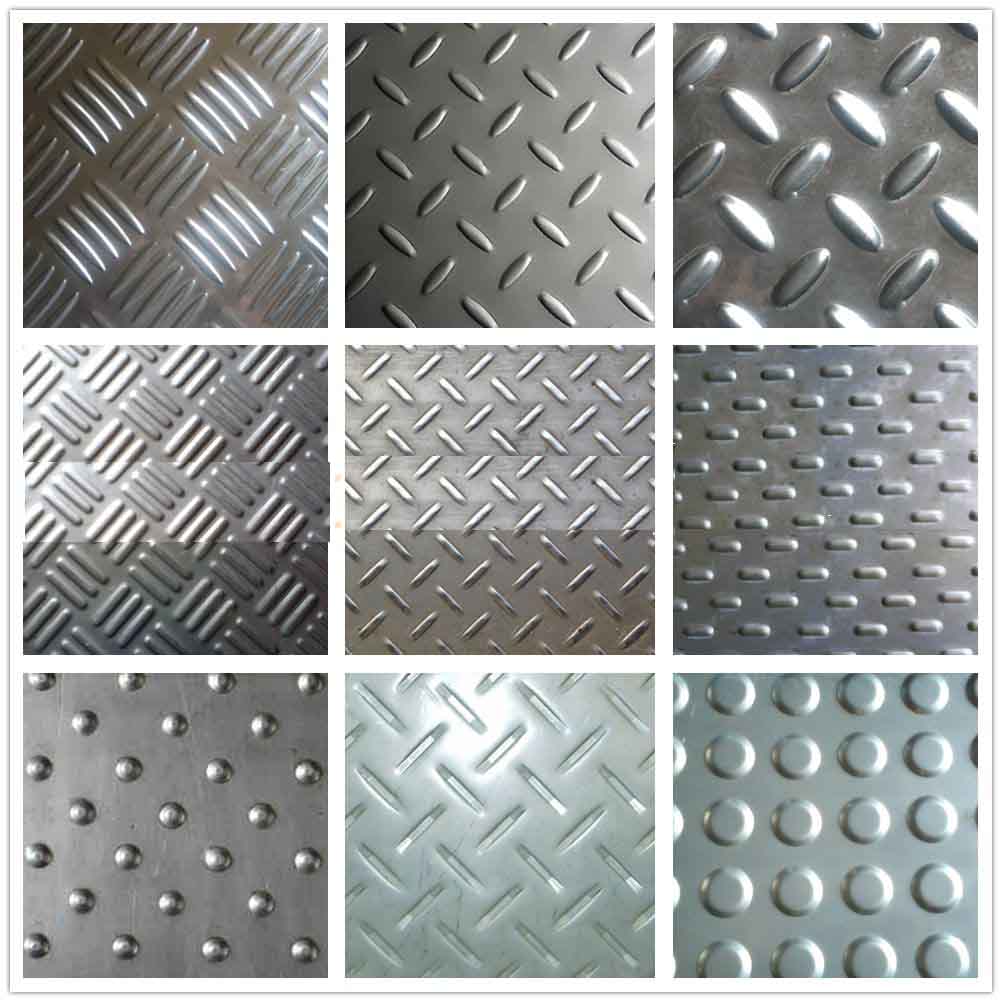

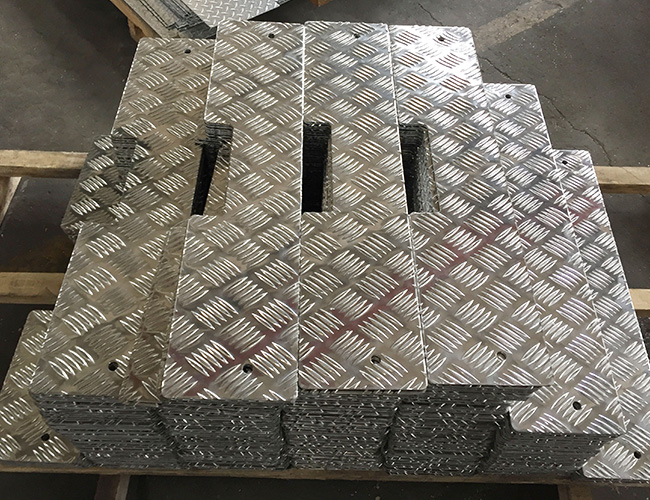

Aluminum tread plate is also known as checker or diamond plate. The added texture reduces the risk of slipping, making diamond plate a solution for stairs, catwalks, walkways, and ramps in industrial settings. Additional applications include truck beds and trailer floors. Its non-skid properties mean that diamond plate is frequently used on the interior of ambulances and on the footplates of firetrucks. We have Bright/mirror Suface and Normal Surface available
Specification
|
Product |
5 bar aluminum tread plate |
|
Alloy |
1050 1060 1100 3003 3004 3105 5052 5754 6061 6062 7072 |
|
Temper |
O,H14,H24,H32,H112 Etc;T4,T651 Etc |
|
Thickness |
1.0~6.0mm |
|
Width |
500~1600mm |
|
Length |
As your requst |
|
Film |
Can be blue film coated or not |
|
MOQ |
3MT depend on the SPECIFICATION . |
|
Production Process |
Cold Rolled,Hot Rolled |
|
Application |
Industrial Construction,Warehouse, Roof of Large-span Steel Structure Housing ,Wall Decoration |
|
Kind attn |
Specification can be custommized as the customer's requirements. |
Aluminum tread plate weight table (kg/m2)
| diamond plate | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|
Material |
LY12 | LY11 | L1-L6 | LY11 | LF6 KF43 | LY11 | LD30 |
|
specific weight |
2.78 | 2.8 | 2.71 | 2.8 | 2.68 | 2.80 | 2.70 |
|
Thickness mm |
. | ||||||
| 1.0 | 3.45 | - | - | - | - | - | - |
| 1.2 | 4.01 | - | - | - | - | - | - |
| 1.5 | 4.84 | - | 4.67 | - | 4.62 | - | - |
| 1.8 | 5.68 | - | - | - | - | - | - |
| 2.0 | 6.23 | 6.90 | 6.02 | 5.06 | 5.96 | - | 6.00 |
| 2.5 | 7.62 | 8.30 | 7.38 | 7.46 | 7.3 | - | 7.35 |
| 3.0 | 9.01 | 9.70 | 8.73 | 8.86 | 8.64 | 9.1 | 8.10 |
| 3.5 | - | 11.10 | 10.09 | 10.26 | 9.98 | - | 10.05 |
| 4.0 | - | 12.50 | 11.44 | 11.66 | 11.32 | 11.95 | 11.40 |
| 4.5 | - | - | 12.8 | - | - | - | - |
| 5.0 | - | - | - | - | - | 15.35 | - |
| 6.0 | - | - | - | - | - | 18.2 |
- |
