Product Introduction
Diamond plate, also referred to as deck plate or floor plate, is a product that has a raised pattern or texture on one side with the reverse side being smooth. The diamond pattern itself can vary, as can the height of the raised area. Diamond plate is most commonly used on metal stairs to provide increased traction.
The raised bumps on the surface of the plate increase the friction between a person’s shoe and the surface of the plate reducing the chance of someone slipping on the walking surface. For this reason, diamond plate is a type of non-slip walking surface.
Specification
| Name | Aluminum Diamond Plate |
| Aluminum Diamond Plate Alloy | 3003, 4017, 5052, 6061 |
| Aluminum Diamond Plate Condition | H14, H22, T6 |
| Other Names | Diamond aluminum plate, diamond tread aluminum sheet, Embossed Aluminum diamond plate, Durable Aluminum diamond plate, Aluminum diamond tread Plate |
| Aluminum Diamond Plate Thickness | 1.2-8mm |
| Aluminum Diamond Plate Width | 100-1850 mm |
| Aluminum Diamond Plate Length | 500-16000 mm |
| Aluminum Diamond Plate Production Process | Hot rolling, embossing. |
| Aluminum Diamond Plate Surface Treatment | Mill finish, Bright finish |
| Aluminum Diamond Plate Color | Black, sliver, blue, Red, etc. (Customizable) |
| Aluminum Diamond Plate Delivery Type | Sheet, Plate, Roll, Strip |

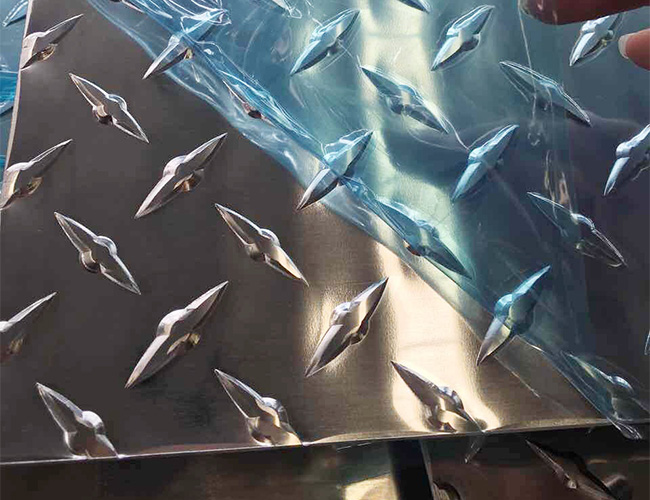

| Aluminum Diamond Plate Surface Protection | With membrane or without membrane, can be customized according to requirements |
| Aluminum Diamond Plate Packaging | Wooden frame/wooden box packaging, steel belt fixed |
| Aluminum Diamond Plate Standards | GB/T3618, Q/EL432, EN 1386, ASTM -B209 |

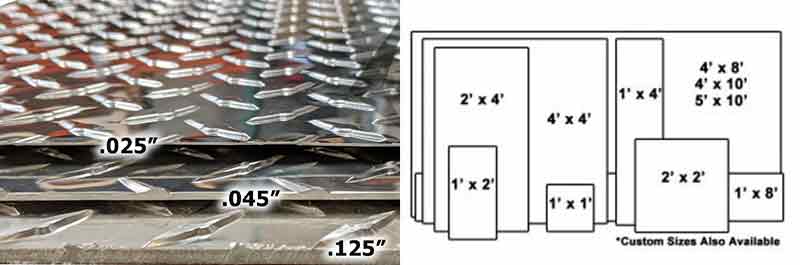

Common Sizes And Thicknesses
Aluminum diamond plate thickness can be customized based on customer choices. Among them, 1/4" aluminum diamond plate is the most commonly used thickness. Below are common thicknesses of diamond pattern plates:
0.045" (3/64") aluminum diamond plate
0.063" (1/16") aluminum diamond plate
0.125" (1/8") aluminum diamond plate
0.187" (3/16") aluminum diamond plate
0.25" (1/4") aluminum diamond plate
We can provide a variety of sizes of diamond plate sheets to accommodate your projects, regardless of their size. Among them, 4x8 aluminum diamond plate is the most commonly used size. Below are common sizes of diamond pattern plates:
2' x 8' (24" x 96") aluminum diamond plate
4' x 8' (48" x 96") aluminum diamond plate
4' x 10' (48" x 120") aluminum diamond plate
5' x 8' (60" x 96") aluminum diamond plate
5' x 10' (60" x 120") aluminum diamond plate
In addition, we can also provide Aluminum Diamond Checker Sheet Rolls 0.025 (Thin). If you require specific sizes and thicknesses, we also offer custom services.
Surface and Colors
Mill finish aluminum diamond plate: features a standard rolled surface with a certain level of roughness.
Bright aluminum diamond plate: the surface is exceptionally smooth, with a reflectivity close to 90%. It offers high cleanliness and is ideal for decorative purposes.
Anodized aluminum diamond plate: this type has increased strength and corrosion resistance and can be anodized into various colors, enhancing its decorative appeal. Here are some different colors of anodized diamond Plate:
Glossy black aluminum diamond plate: utilizes a dark, smooth version for a more modern and clean appearance.
Metallic gray aluminum diamond plate: features a less shiny, more industrial appearance and finish.
Race red aluminum diamond plate: incorporates a red finish for a more vibrant and decorative appearance.
Stock List
| DECIMAL THICKNESS INCHES | SIZE IN INCHES | APPROX. WT. PER SQ. FT. IN LBS. | APPROX. WT. PER PLATE IN LBS. |
| 0.063 | 60×96 | 1.02 | 40.80 |
| 0.1 | 48×96 | 1.57 | 50.24 |
| 0.08 | 48×96 | 1.21 | 38.72 |
| 0.1 | 48×96 | 1.57 | 50.24 |
| 0.125 | 48×120 | 1.90 | 76.00 |
| 0.125 | 48×144 | 1.90 | 91.20 |
| 0.1 | 48×120 | 1.57 | 62.80 |
| 0.1 | 48×144 | 1.57 | 75.36 |
| 0.125 | 60×144 | 1.90 | 114.00 |
| 0.1 | 60×96 | 1.57 | 62.80 |
| 0.188 | 48×144 | 2.82 | 135.36 |
| 0.1 | 60×120 | 1.57 | 78.50 |
| 0.1 | 60×144 | 1.57 | 94.20 |
| 0.125 | 48×96 | 1.92 | 61.44 |
| 0.25 | 36×144 | 3.70 | 133.20 |
| 0.25 | 48×120 | 3.70 | 148.00 |
| 0.125 | 48×120 | 1.92 | 76.80 |
| 0.125 | 48×144 | 1.92 | 92.16 |
| 0.25 | 48×144 | 3.70 | 177.60 |
| 0.375 | 48×144 | 5.49 | 236.52 |
| 0.125 | 60×96 | 1.92 | 76.80 |
| 0.125 | 60×120 | 1.92 | 96.00 |
| 0.125 | 60×144 | 1.92 | 115.20 |
| 0.125 | 72×144 | 1.92 | 138.24 |
| 0.187 | 48×96 | 2.82 | 90.24 |
| 0.187 | 48×120 | 2.82 | 112.80 |
| 0.187 | 48×144 | 2.82 | 135.36 |
| 0.187 | 60×144 | 2.82 | 169.20 |
