Transformer Aluminium Strips

Transformer Aluminium Strips

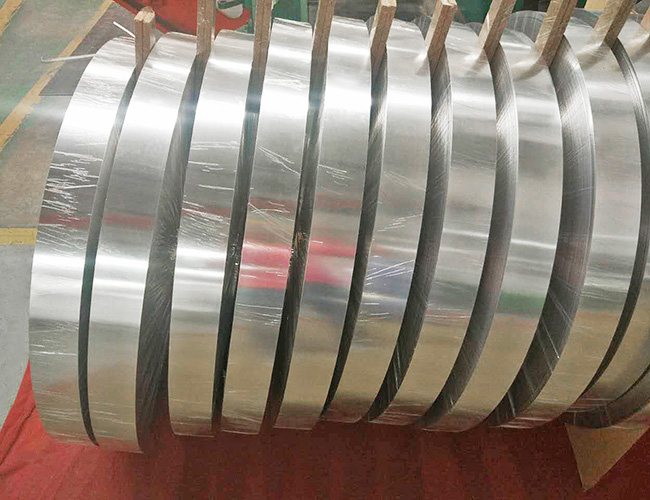

Transformer winding aluminium strips, also called aluminum strips foils for transformer winding, are mainly used in the dry type transformers manufacturing industries.

  • TEL

    +86 13598417520

  • email

    wade@haomeicn.com

  • PDF Download

    PDF Download

Product introduction

Haomei transformer aluminium strip can be used for variable transformer like low or high voltage transformer winding, high frequency transformer,step up or down voltage transformer etc. The alloy can be used to meet the minimum industry requirements for strip conductor, is closely controlled to assure smooth, substantially burr-free edges and strip-size avail-abilities are in capacities exactly equivalent to those of standard copper wire sizes.

Specification

Al Grades 1050, 1350,1060,1070
Temper O
Thickness 0.2mm-3.5mm
Width Width:10mm-1600mm
Edge Slit/Round
Quantity Tolerance ±10%
Paper Core Internal
Diameter
Ø 150mm,Ø300mm, Ø400mm, Ø500mm paper core, special internal diameter core and without paper core on
special request
Surface Treatment The strip has a smooth surface, free from scratches and impurities
Electrical Conductivity Transformer windings made of 1050 O in annealed condition is guaranteed to be better than 60.0 % ACS.
Transformer windings made of 1060 O in annealed condition is guaranteed to be better than 61.5 % ACS.
Transformer windings made of 1070 O in annealed condition is guar-anteed to be better than 62.7 % ACS.
Transformer windings made of 1350 O in annealed condition is guaranteed to be better than 62.0 % ACS.
Applications Transformer winding
Packaging Wooden Pallet/Wooden Case
Payment Terms 30% TT deposit and 70% balance before shipment, 100% LC at sight
Delivery Time 7-10 working days
MOQ 5 Tons
Shipping Port Shanghai/Ningbo port
Sample The sample of aluminium strip is available in Highv stock
Remark Aluminium strip can be customized

Features

Super Thin, No Burrs
Round Edge
High Conductivity
High Purity
Totally Annealed
Good Reputation
High Strangth

Chemical Composition

Alloy 1050

1050 O Aluminum Strips Chemical Composition(%)
Element Al Si Fe Mg Zn Mn Ti Cu V
Standard Value ≥99.5 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039

Alloy 1060

1060 O Aluminum Strips Chemical Composition(%)
Element Al Si Fe Mg Zn Mn Ti Cu V
Standard Value ≥99.6 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039

Alloy 1070

1070 O Aluminum Strips Chemical Composition(%)
Element Al Si Fe Mg Zn Mn Ti Cu V
Standard Value ≥99.7 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039

Alloy 1350

1350 O Aluminum Strips Chemical Composition(%)
Element Al Si Fe Mg Zn Mn Ti Cu V
Standard Value ≥99.5 0.0431 0.203 0.0013 0.0093 0.0104 0.02 0.0022 0.0039
