1. 3003 aluminum plate
3003 aluminum plate

3003 aluminum plate

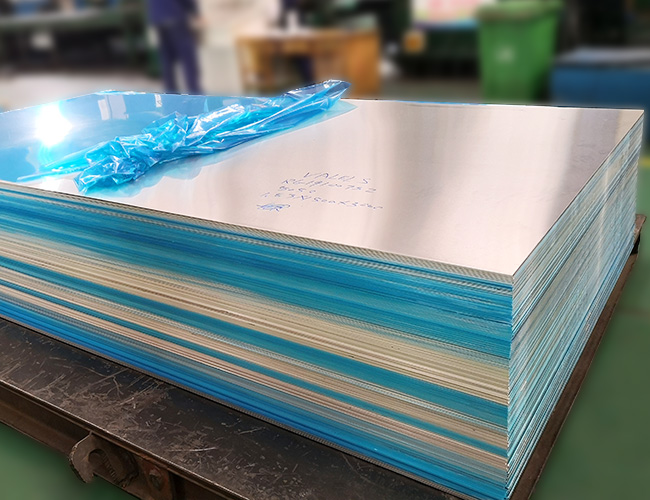

3003 aluminum plate is a flat, commercially pure aluminum alloy that is the most widely used aluminum alloy. It is made of 98.6% aluminum, 1.2% manganese, and 0.12% copper.

  • TEL

    +86 13598417520

  • email


  • PDF Download

    PDF Download

Product introduction

3003 aluminum alloy is the most widely used of all aluminum alloys. It is essentially commercially pure aluminum with the addition of manganese which increases the strength approx. 20% over 1100 grade aluminum alloy. 3003 may show slight discoloration when anodized, but it reacts well to mechanical and organic finishings.

Aluminum alloy 3003 plate sheet is also produced as a bright finish tread plate (also known as checkered plate) with industrial and decorative applications. Aluminum tread plate in alloy 3003 is typically used in decorative architectural applications, due to its bright reflective finish. It is usually produced in a “1-bar” or “ 5 bars” tread pattern.


Product 3003 Aluminum Sheet
Temper F,O,H12,H14,H16



Thickness 0.10 mm-350 mm
Width 100 mm-2600 mm
Length Any length, according to the transportation, usually less than 12m.
Standards ASTM-B209, EN573-1, GB/T3880.1-2006, GB/T 24001-2016, GB/T 19001-2016
Surface treatment Mill finish, coated, anodized, mirror, embossed, checkered, etc.
Application Stock silos, antenna pot materials, power battery shells, automotive heat shields, etc.

Chemical Composition

Chemical Element % Present
Others (Total) 0.0 – 0.15
Cobalt (Co) 0.05 – 0.20
Hydrogen (H) 0.0 – 0.70
Magnesium (Mg) 1.00 – 1.50
Silicon + Iron (Si+Fe) 0.0 – 0.60
Zirconium (Zr) 0.0 – 0.10
Other (Each) 0.0 – 0.05
Aluminium (Al) Balance


Physical Property Value
Density 2.73 g/cm³
Melting Point 655 °C
Thermal Expansion 23.1 x10^-6 /K
Modulus of Elasticity 69.5 GPa
Thermal Conductivity 190 W/m.K
Electrical Resistivity 0.034 x10^-6 Ω .m
Mechanical Property Value
Tensile Strength 95 – 135 MPa
Proof Stress 35 Min MPa
Hardness Brinell 28 HB


Alloy 3003 plate sheet is typically used for:
Building industry : roofing and sidings, acoustic ceilings,corrugated sheets
Chemical and food industries : storage tanks, pipes, metal work
Equipment for heating and cooling : heat ex-changers, air condition evaporators, motor vehicle radiators,
freezer linings
Home appliances : cooking utensils, bakery moulds Office equipment
Typical Applications
cooking utensils, decorative trim, awnings, siding, storage tanks, chemical equipment.
