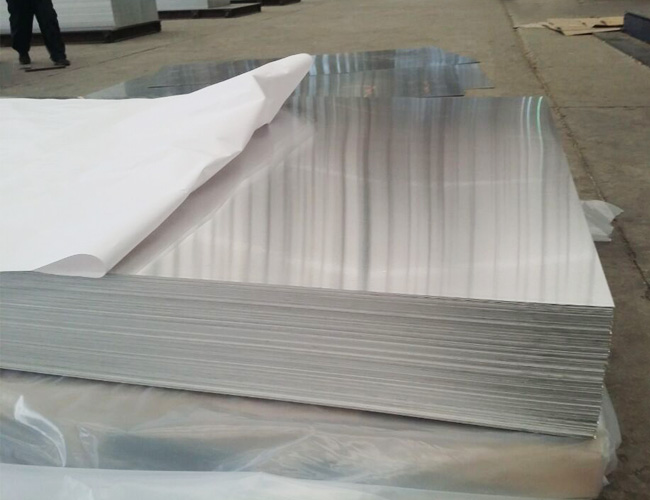

1050 aluminum plate

Product introduction

1050 aluminum plate contains more than 99.5% aluminum, is a kind of industrial pure aluminum.1050 aluminum plate has high plasticity, corrosion resistance, good electrical and thermal conductivity, but low strength.We can produce 1050 aluminum plates 20-2650mm wide and 0.1-500mm thick for customized production.
Performance advantages of 1050 aluminum plate:
1. High plasticity, corrosion resistance, electrical conductivity and thermal conductivity
2, can be gas welding, hydrogen welding and contact welding
3, easy to bear all kinds of pressure processing and extension, bending

1050 aluminum plate belongs to a product of pure aluminum series, which is similar to 1060 series products in chemical composition and mechanical properties, and is basically replaced by 1060 aluminum strip in application.The last two digits of the 1050 series shall be 50. According to the international designation principle, the product shall be qualified only if the aluminum content reaches 99.5% or more.China's aluminum alloy technical standard (GB/ t3880-2006) also clearly stipulates that 1050 contains 99.5% aluminum.Because it contains no other technical elements, the production process is relatively simple and the price is relatively cheap. It is the most commonly used series in conventional industries.Industrial pure aluminum has high plasticity, corrosion resistance, good electrical conductivity and thermal conductivity, but the strength is low, not through heat treatment reinforcement, cutting is not good, can accept contact welding, gas welding.

Technical Parameter

Features

Industrial pure aluminum has the general characteristics of aluminum, low density, good conductivity, good corrosion resistance, good plastic processing performance, can be processed into plates, tape, foil and extrusion products, gas welding, argon arc welding, spot welding.

The only form of heat treatment is annealing. The starting temperature of recrystallization is related to impurity content and deformation degree, generally around 200℃.Sheet annealing of sigma b = 80 ~ 100 mpa, sigma 0.2 = 30 ~ 50 mpa, zeta = 35% ~ 40%, HB = 25 ~ 30.Cold deformation by 60% ~ 80%, although can increase to 150 ~ 180 mpa, but zeta value decreased to 1% ~ 1.5%.Increasing the content of iron and silicon impurities can improve the strength, but reduce the plasticity, conductivity and corrosion resistance.The annealing and hardening characteristics of 1200(L5) industrial pure aluminum plates are shown in the figure.It can be seen from the figure that the mechanical properties of different cold work hardening states can be obtained by adjusting the annealing temperature after cold deformation or controlling the cold deformation amount after cold deformation.In order to improve the formability, the former method is better.

USE

1050 aluminum plate strip
Often used in daily necessities, lighting appliances, reflective boards, ornaments, chemical industry containers, heat sink, signs, electronics, lamps, nameplates, electrical appliances, stamping parts and other products.Chemical equipment is a typical application in some occasions that require high corrosion resistance and formability, but not high strength.

Chemical composition

Magnesium Mg: 0.05;
Zinc Zn: 0.05;
Manganese Mn: 0.05;
Ti: 0.03;
Vanadium V: 0.05;
Iron Fe: 0.40;
Single: 0.03.

Mechanical properties of

Tensile strength b (MPa) : 60 ~ 100 ° c
Elongation/(%) : ≥23
Elongation 50mm/ (%) : ≥25
Note: longitudinal mechanical properties of the pipe at room temperature
Sample size: all wall thickness.

Heat treatment specification:

1) complete annealing: heating 390 ~ 430℃;With different effective thickness of the material, the holding time was 30 ~ 120min.At a speed of 30 ~ 50℃/h, it is cooled with the furnace to 300℃, and then air cooled again.

2) rapid annealing: heating 350 ~ 370℃;With different effective thickness of the material, the holding time was 30 ~ 120min.Air or water is cold.

3) quenching and aging: quenching 500 ~ 510℃, air-cooled;Artificial aging 95 ~ 105℃,3h, air cooling;Natural aging room temperature 120h.
