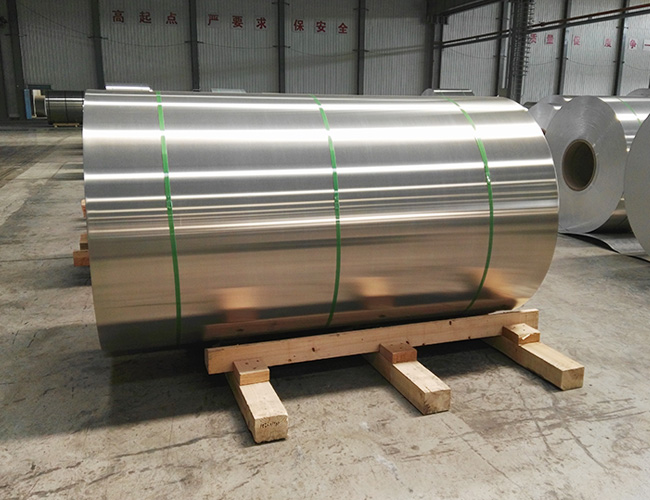

Product introduction
1050 pure aluminum coil belongs to 1000 series aluminum coil, which is the commercially pure wrought family with a purity of 99.5% Al. It also belongs to the 1000 series aluminum alloy, which has better correction resistance than other alloy series. In the 1050 aluminum coil, in addition to the component Al, 0.4% Fe is added, so 1050 aluminum alloy also has high conductivity.
In general, 1050 aluminum coil properties exhibit high plasticity, strong corrosion-resistance, and excellent electrical and thermal conductivity, but the strength of 1050 aluminum alloy is low. Here, Haomei has 18 years of 1050 aluminum coil production experience and is able to produce and supply high-quality 1050 aluminum coil. In addition, different temper can be provided, such as O (annealed), H12, H14, H18, and so on.
Apecification
| Alloy Temper |
Specified | Tensile strength |
Yield strength |
Elongation | ||||||||
| Thickness(mm) | (MPa) | (MPa) | (%) | |||||||||
| 1050-O/
1050-H111 |
0.2-0.5 | 65-95 | Min20 | Min20 | ||||||||
| 0.5-1.5 | Min22 | |||||||||||
| 1.5-3.0 | Min26 | |||||||||||
| 3.0-6.0 | Min29 | |||||||||||
| 6.0-12.5 | Min35 | |||||||||||
| 12.5-80.0 | ||||||||||||
| 1050-H112 | 6.0-12.5 | Min75 | Min30 | Min20 | ||||||||
| 12.5-80.0 | Min70 | Min25 | ||||||||||
| 1050-H12 | 0.2-0.5 | 85-125 | Min65 | Min2 | ||||||||
| 0.5-1.5 | Min4 | |||||||||||
| 1.5-3.0 | Min5 | |||||||||||
| 3.0-6.0 | Min7 | |||||||||||
| 6.0-12.5 | Min9 | |||||||||||
| 12.5-40.0 | ||||||||||||
| 1050-H14 | 0.2-1.5 | 105-145 | Min85 | Min2 | ||||||||
| 1.5-3.0 | Min4 | |||||||||||
| 3.0-6.0 | Min5 | |||||||||||
| 6.0-12.5 | Min6 | |||||||||||
| 12.5-25 | ||||||||||||
| 1050-H16 | 0.2-0.5 | 120-160 | Min100 | Min1 | ||||||||
| 0.5-1.5 | Min2 | |||||||||||
| 1.5-4.0 | Min3 | |||||||||||
| 1050-H18 | 0.2-0.5 | Min135 | Min120 | Min1 | ||||||||
| 0.5-1.5 | Min140 | Min2 | ||||||||||
| 1.5-3.0 | Min2 | |||||||||||
| 1050-H19 | 0.2-0.5 | Min155 | Min140 | Min1 | ||||||||
| 0.5-1.5 | Min150 | Min130 | ||||||||||
| 1.5-3.0 | ||||||||||||
| 1050-H22 | 0.2-0.5 | 85-125 | Min55 | Min4 | ||||||||
| 0.5-1.5 | Min5 | |||||||||||
| 1.5-3.0 | Min6 | |||||||||||
| 3.0-6.0 | Min11 | |||||||||||
| 6.0-12.5 | Min12 | |||||||||||
| 1050-H24 | 0.2-0.5 | 105-145 | Min75 | Min3 | ||||||||
| 0.5-1.5 | Min4 | |||||||||||
| 1.5-3.0 | Min5 | |||||||||||
| 3.0-6.0 | Min8 | |||||||||||
| 6.0-12.5 | ||||||||||||
| 1050-H26 | 0.2-0.5 | 120-160 | Min90 | Min2 | ||||||||
| 0.5-1.5 | Min3 | |||||||||||
| 1.5-4.0 | Min4 | |||||||||||
| 1050-H28 | 0.2-0.5 | Min140 | Min110 | Min2 | ||||||||
| 0.5-1.5 | ||||||||||||
| 1.5-3.0 | Min3 | |||||||||||
Chemical properties
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | ||
| Content | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.07 | 0.05 | 0.15 | Remain | ||
Features
99.5% aluminum content, high plasticity, corrosion resistance, good conductivity and thermal conductivity, but low strength, not strengthened by heat treatment, poor machinability, acceptable for contact welding and gas welding. The production process is relatively simple and the price is relatively cheap
Application
1050 aluminum coil has high ductility and a highly reflective finish. Besides, 1050 aluminum coil is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability, and solder-ability, and it is strengthened by cold working. However, 1050 aluminum coil has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum coil well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enable our products to have a vast application.
Popular application: roofing, gutter, ps panel, etc
Packaging and Delivery

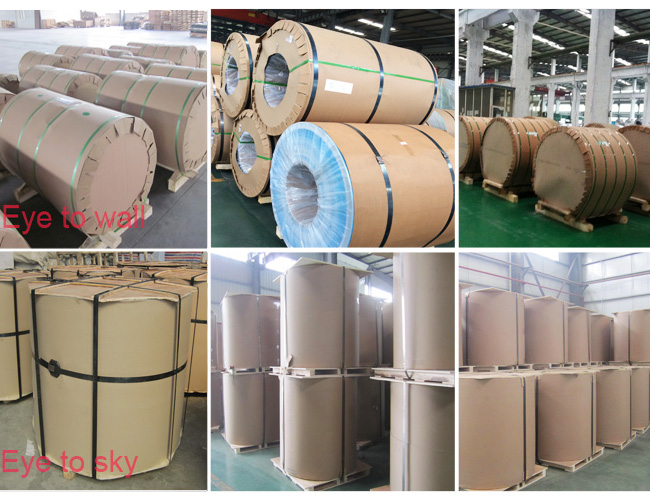

Aluminum products of Haomei Al. meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery. There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
