Product introduction

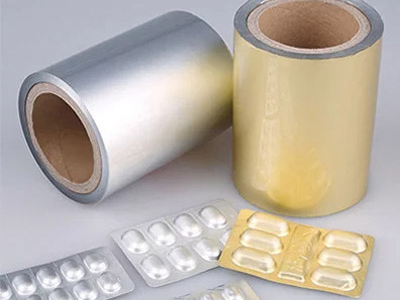

Pharmaceutical foil, with one side bright and one side dull for adhesiveness on dull size side and also having length requirement, is a typical product of pharmaceutical grade aluminum alloy used for so the demand for aluminum electrolytic capacitors is also increasing.
We supplies high quality 8000 series PTP aluminum foil with the temper of H18, which has features of non-toxic, odorlessness, lightweight, good light-proof performance, moisture-proof performance and barrier property. It has become one of the main forms in medicine packaging; we also produces 8000 series aluminum foil for cold-forming pharmaceutical foil with the temper of O, which has the features of good deep draw performance, light-proof performance, moisture-proof performance, prolong the storage life of interior items
Specifications
| Alloy-Temper | 8079/8079DC/8111-O |
| Thickness (mm) | 0.0065/0.007/0.009/0.012 |
| Width (mm) | 425-1260 |
| Meter (m) | 3000-12000 |
| Core I.D. (mm) | 76 |
| Pinhole (PCs/㎡) | 0.0065≤150 PCs/㎡；0.007≤100 PCs/㎡；0.009≤50 PCs/㎡；0.012≤10 PCs/㎡ |
| Tensile strength (MPa) | 8079DC/8079:0.0065/0.007/0.009/0.012mm：≥80 ； 8111:0.0065/0.007/0.009/0.012mm：≥70 |
| Elongation (%) | 8079DC: 0.0065/0.007mm: ≥2.0; 0.009/0.012mm≥3.0； 8079: 0.0065/0.007/0.009mm≥1.5; 0.012mm≥2.0； 8111: 0.006/0.007/0.009mm≥2.0 |

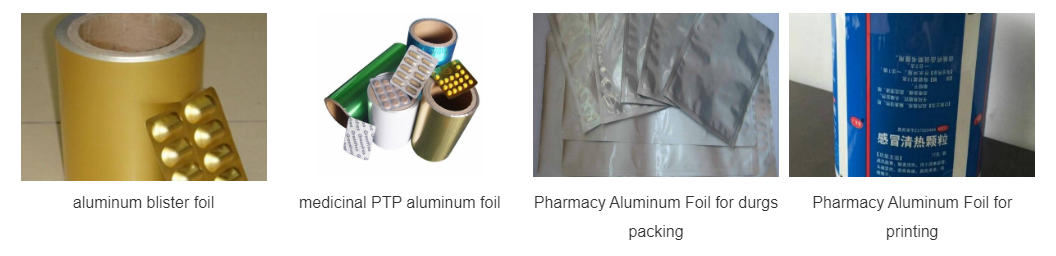

Applications
Pharmaceutical Aluminum Foil standards: national standard, American standard, European standard, Russian standard, Japanese standard, etc.
Pharmaceutical Aluminum Foil alloy grade: 8011 aluminum foil/8021 aluminum foil/8079 aluminum foil
PTP Pharmaceutical Aluminum Foil: ptp Pharmaceutical Aluminum Foil is also called medical board aluminum foil or capsule aluminum foil. It is mostly made of 8011-H18 aluminum foil or 8011-O aluminum foil, used for flat laying, with a thickness of 0.016-0.04mm; Blister Pharmaceutical Aluminum Foil: Blister aluminum foil, also called cold-formed medicinal foil, is mostly made of 8021-O aluminum foil. It is used for high-end and tightly sealed drug packaging with moisture-proof and light-shielding, with a thickness of 0.04-0.065mm;
Tropical Pharmaceutical Aluminum Foil: Tropical aluminum foil, also called aluminum-plastic aluminum, tropical blister packaging is equivalent to adding a layer of cold-stamped aluminum foil outer cover on the outside of thermoformed plastic blister and PTP aluminum foil. 8021-O state aluminum foil and 8079-O state aluminum foil are mostly used, which is the highest-end packaging aluminum foil in pharmaceutical packaging;
Aluminum foil for drug bottle caps: Aluminum foil for drug bottle caps is also called aluminum foil for medical cap materials. It is mostly made of 8011-H14 aluminum foil or 8011-H16 aluminum foil

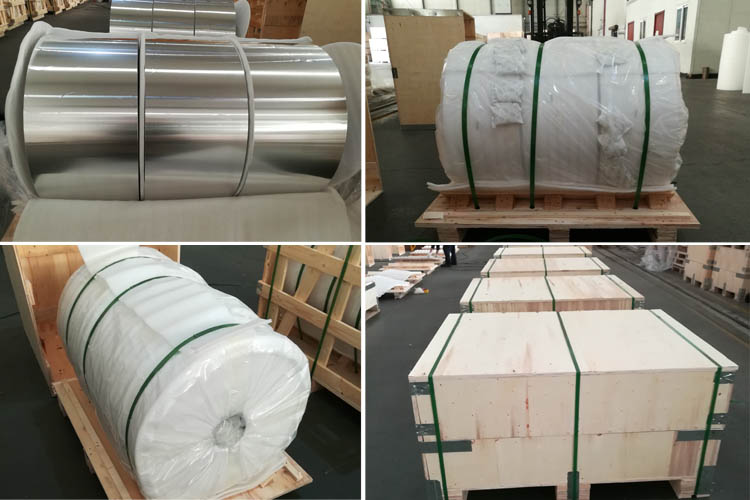

Shipping Package
Aluminum foil product meet the export standard.free-fumigated wooden case is adopted to products from damage during the delivery.there are two kinds of packaging .which is suspension packaging or Horizontal packaging. customers can choose either of them for their convenience .basically ,1x20" container can load 18-22tons. and 20-24tons in 1x40" container.Each wooden case weight from 0.5MT-1MT,upto customer's request.
