Product Introduction
Alloy 8011 is a typical alloy for aluminum foil and which is currently the most widely used metal in our daily life. Haomei is specialized in the business of household foil, container foil, packaging foil as well as pharmaceutical foil. 8011 aluminum foils are available in various thicknesses, width,s and mill to finish with a shiny side and a matte side.
8011 alloy aluminum foil can be made into a foil container/foil platter, Our container foil jumbo coil is superior household material for packaging which features resistance to water and oil, isolation to light, and conductivity of heat. It is environmentally friendly and is reusable.
Specifications
roducts | Type | Temper | Thickness(mm) | Width(mm) | Length(mm) |
8011 Household Foil | Bare, Mill Finish | H111, H12, H14, H16, H18, H22, H24, H26, H28 | 0.01-0.2 | 10 – 1840 | coil |
8011 Container Foil | H22, H24 | 0.01-0.2 | 10 – 1840 | coil | |
8011 Packaging Foil | O, H22, H24 | 0.018-0.2 | 10 – 1840 | coil | |
8011 Pharmaceutical Foil | H14,H18 | 0.018-0.2 | 10 – 1840 | coil |
At Haomei Aluminum, we offer a wide range of sizes and thicknesses for our 8011 aluminum foil products. Our sizes range from 10mm to 1840mm and our thicknesses range from 0.006mm to 0.2mm, ensuring we have the right product for your business needs
Payment Terms | 30% T/T in advance as deposit, 70% balance against the B/L copy,L/C |
Minimum Order Quanlity | 3 tons pre size |
Delivery time | 20-30days after receiving L/C or deposit |
Loading Port | Qingdao China (or any port in China ) |
Remark | Specific requirement of alloy grade,temper or specification can be discussed at your request |
Chemical composition
Si | Cu | Mg | Zn | Mn | Cr | Fe | Ti | Other | Other total | Al |
---|---|---|---|---|---|---|---|---|---|---|
0.50 ~ 0.90 | ≤ 0.1 | ≤ 0.05 | ≤ 0.1 | ≤ 0.2 | ≤ 0.05 | 0.60 ~ 1.0 | ≤ 0.08 | ≤ 0.05 | ≤ 0.15 | remainder |
Mechanical Properties
8011 foil is highly malleable, ductile, and lightweight, which makes it an ideal packaging material. Additionally, it has excellent barrier properties, which help to protect the contents of the package from light, moisture, and other environmental factors.
Alloy | Temper | Thickness (mm) |
Tensile Strength (Mpa) |
Elongation (%) A50mm |
Elongation (%) A100mm |
8011 | O | 0.006-0.009 | 50-100 | – | 0.5 |
>0.009-0.025 | 55-100 | – | 1 | ||
>0.025-0.04 | 55-110 | – | 4 | ||
>0.04-0.09 | 60-120 | – | 4 | ||
>0.09-0.14 | 60-120 | 13 | – | ||
>0.14-0.2 | 60-120 | 15 | – | ||
H18 | 0.035-0.2 | ≥160 | – | – | |
H19 | 0.035-0.2 | ≥170 | – | – | |
H22 | 0.035-0.04 | 90-150 | – | 1.0 | |
>0.04-0.09 | 90-150 | – | 2.0 | ||
>0.09-0.14 | 90-150 | 5 | – | ||
>0.14-0.2 | 90-150 | 6 | – | ||
H24 | 0.035-0.04 | 120-170 | 2 | – | |
>0.04-0.09 | 120-170 | 3 | – | ||
>0.09-0.14 | 120-170 | 4 | – | ||
>0.14-0.2 | 120-170 | 5 | – |
Applications
8011 aluminum foil is widely used in the packaging industry for a variety of products, including food, beverages, pharmaceuticals, and cosmetics. It is often used to package products that require protection from light, moisture, and other environmental factors. Some common uses of 8011 foil include:
8011 aluminium foil is used for bottle caps: liquor bottle caps, red wine caps, cosmetic caps, milk powder caps, medical caps, beverage caps, yogurt caps, etc. Advantages: food-grade, brushing A grade, low ear rate.
Aluminum foil 8011 is used for pharmaceutical packaging: PTP medicinal aluminum foil, cold stamping plastic foil, 8011-H18 medical packaging aluminum foil, capsule aluminum foil board, etc. Advantages: high cup convex value, high strength of aluminum foil, good sealing.
It is used for food packaging: food packaging, heat sealing foil, lunch box material, container foil, aluminium foil gasket for sealing. Advantages: clean surface, no foreign matter, food-grade, safer.
8011 industrial aluminium foil: aluminum foil for transformer, aluminum foil tape, aluminium foil for cable belt, aluminum foil for filter.
Packing

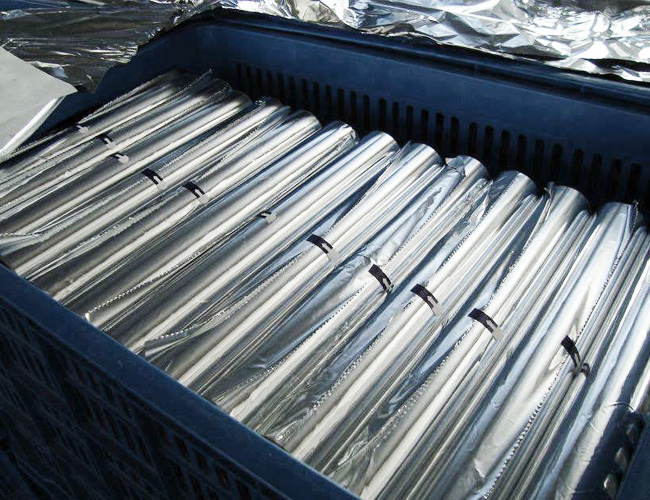

waterproof paper and plastic cover the package, and then make the wooden pallet.
