Product introduction
3003 aluminium foil is a common product of Al-Mn series alloys. Because of the addition of alloy Mn element, it has excellent rust resistance, weldability and corrosion resistance. Similarly, 3003 aluminum foil is also a non-heat treated alloy, so a cold working method is used to improve its mechanical properties, but 3003 aluminium foil with medium strength is 10% stronger than 1 series alloy aluminum foil. In addition, the plasticity and welding performance of 3003 aluminium foil is also very good. So, It is a good choice for aluminum foil for electrolytic capacitor, lunch box container, and aluminum honeycomb core material.
AL 3003 is an alloy with very good corrosion resistance and moderate strength. It does not heat treatable and develops strengthening from cold working only. Main tempers for aluminum foil 3003 include H18, H22, H24, and other tempers upon request. This alloy provides a better heating and cooling environment so that widely used in household applications
Specifications
|
Products |
Type |
Temper |
Thickness(mm) |
Width(mm) |
Length（mm） |
|||||||
|
3003 Household Foil |
Painted, Bare, Mill Finish Tread plate |
H111 H12 H14 H16 H18 H22 H24 H26 H28 |
0.01-0.2 |
300-1100 |
coil |
|||||||
|
3003 Container Foil |
H22 H24 |
0.01-0.2 |
200-1100 |
coil |
||||||||
|
3003 Packaging Foil |
O H22 H24 |
0.018-0.2 |
100-1600 |
coil |
||||||||
|
3003 Electronic Foil |
H18 |
0.02-0.055 |
100-1600 |
coil |
||||||||
Chemical Composition
|
|
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others-Each |
Others Total |
Al Min |
|
|---|---|---|---|---|---|---|---|---|---|---|---|
|
3003 |
0.6 |
0.7 |
0.05-0.20 |
1.0-1.5 |
– |
– |
– |
– |
0.05 |
0.15 |
Remainder |
Mechanical Properties
| lloy-Temper |
Tensile Strength (ksi) |
Yield Strength (ksi) |
Elongation (%) |
|---|---|---|---|
| 3003-O |
16 |
6 |
30 |
| 3003-H14 |
22 |
21 |
3 |
| 3003-H18 |
29 |
27 |
3 |

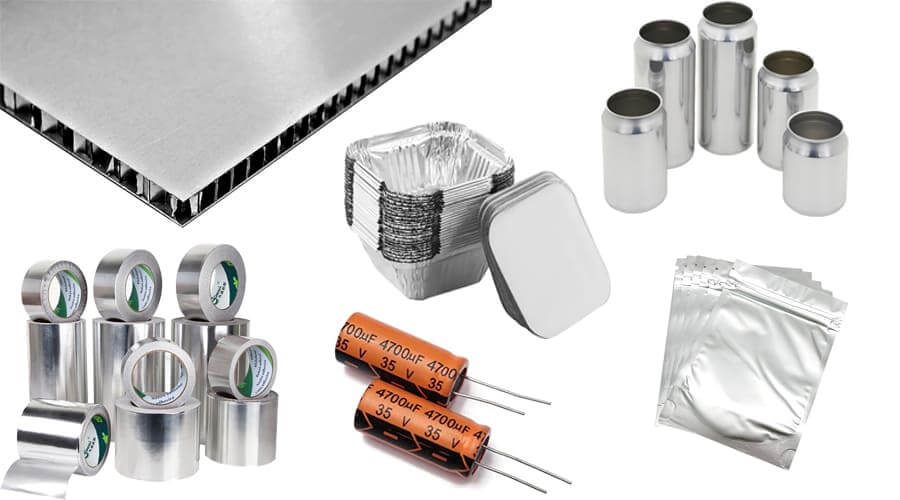

Applications
From thick foil to single zero foil and double zero foil, this material with a thickness of no more than 0.2mm is widely used in daily life.
There are household foils, container foils, lunch box foils, food foils, flexible packaging foils, beer sealing foils, etc. used in food.
In addition to the kitchen, aluminum foil is commonly used in life, such as medicinal foil, cigarette foil, hairdressing foil and decorative foil.
Other application fields include battery foil, battery soft package foil, electronic label foil, circuit board foil, air-conditioning duct foil, brazing foil, automotive air-conditioning fin foil, heatsink foil, printing foil, electronic foil, thermal insulation foil, circuit board foil, cardboard foil, heat sealing foil, electronic foil, etc.

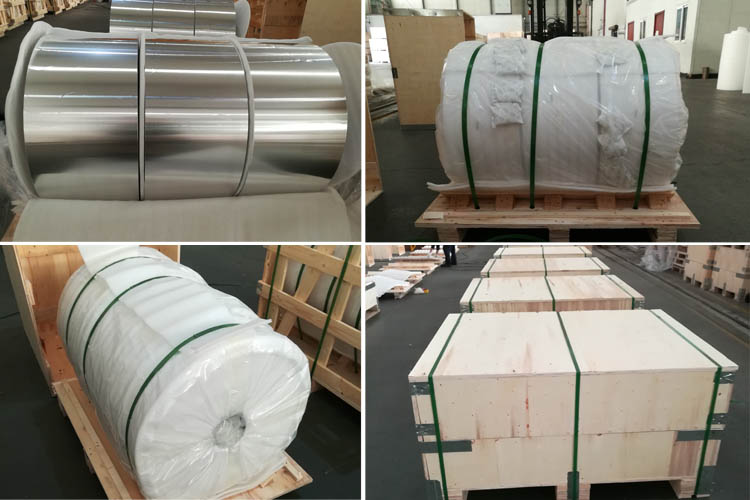

Packing Detail
Packaging Details:waterproof paper or plastic cover the package ,then make the wooden pallet . eye to wall or eye to sky Delivery Detail:20-25 days once received the deposit
