Product introduction
1050 aluminium is an aluminium-based in the “commercially pure” wrought family (1000 or 1xxx series). It is commonly used in the electrical and chemical industries, on account of having high electrical conductivity, corrosion resistance, and workability. 1050 aluminum foil alloy is also sometimes used for the manufacture of heat sinks, since it has a higher thermal conductivity than other alloys. It has low mechanical strength compared to more significantly alloyed metals.

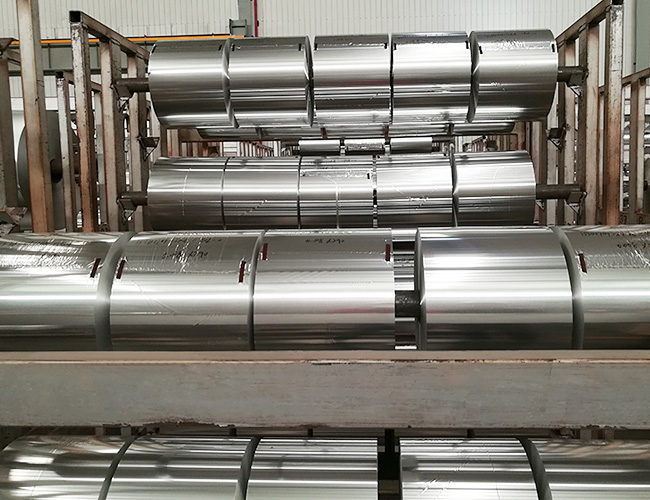

Haomei aluminium is the leading supplier of industrial-grade 1050 aluminum foil to secondary battery manufacturers who utilize it to produce their lithium-ion battery cathodes. Our foil can be made to customer specifications in the standard tempers, thickness, and width required through hot or cold rolling. All our foil products are carefully packaged to industry standards using a wooden pallet, and waterproof plastic covering to ensure it is delivered to our customers securely.
Specifications
| Width (mm) | 100 – 1600 |
| Thickness (mm) | 0.014 – 0.2 |
| Length | As Required |
| Tempered State | O/H16/H18/H19/H22/H24 |
Chemical Composition
| Element | Percentage By Weight |
| Aluminum (Al) | 99.5% |
| Iron (Fe) | 0 – 0.4% |
| Silicon (Si) | 0 – 0.25% |
| Copper (Cu) | 0 – 0.05% |
| Magnesium (Mg) | 0 – 0.05% |
| Manganese (Mn) | 0 – 0.05% |
| Zinc (Zn) | 0 – 0.05% |
| Other | 0 – 0.15% |
Chemical Properties
|
Al |
≥99.5% |
|
Cu |
≤0.05% |
|
Fe |
≤0.4% |
|
Mg |
≤0.05% |
|
Mn |
≤0.05% |
|
Si |
≤0.25% |
|
Ti |
≤0.03% |
|
V |
≤0.05% |
|
Zn |
≤0.05% |
Mechanical Properties
|
Elongation (Annealed): 1 |
39 |
|
Elongation (H12): |
12 |
|
Elongation (H14): |
10 |
|
Elongation (H16): |
8 |
|
Elongation (H18): |
7 |
|
Tensile Strength (Annealed): 2 |
11 x 1000 psi |
|
Tensile Strength (H12): |
14 x 1000 psi |
|
Tensile Strength (H14): |
16 x 1000 psi |
|
Tensile Strength (H16): |
19 x 1000 psi |
|
Tensile Strength (H18): |
23 x 1000 psi |
|
Yield Strength (Annealed): 3 |
4 x 1000 psi |
|
Yield Strength (H12): |
12 x 1000 psi |
|
Yield Strength (H14): |
15 x 1000 psi |
|
Yield Strength (H16): |
18 x 1000 psi |
|
Yield Strength (H18): |
21 x 1000 psi |

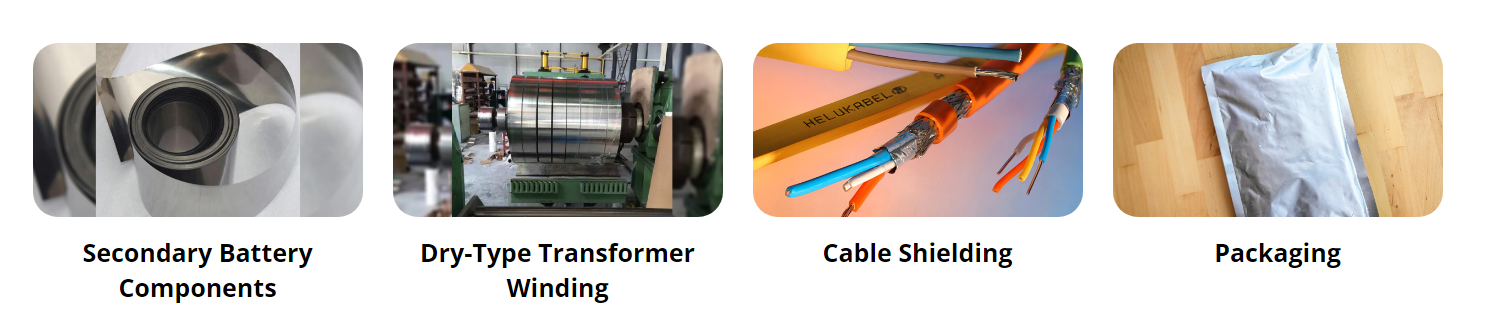

Applications
Used for transformer winding:
The aluminum foil used for transformer winding is required high-quality pure aluminum as raw material which has high conductivity, soft characteristics, and smooth surface, is an ideal material for the production of dry-type transformers and is the key raw material for transformer winding.
Designers of transformer manufacturing usually select 1050,1060,1070,1350 grades, the aluminum content is min 95% but commonly above 99.6%-99.7 %. Aluminum sheet foils are mainly used in dry-type transformers of high and low-voltage winding as the conductive material. As aluminum transformers tend to be less costly than copper transformers, therefore, aluminum foil is the most popular material for the transformer strip.
Other usages:
Disposable aluminum foil plates are most widely used for kitchen wrap and utensils, outside decoration, and in thousands of industrial applications where a strong, light, easy construction material is needed.
Packing Detail
Packaging Details:waterproof paper or plastic cover the package ,then make the wooden pallet . eye to wall or eye to sky Delivery Detail:20-25 days once received the deposit
