1. 3003 Aluminum Circle

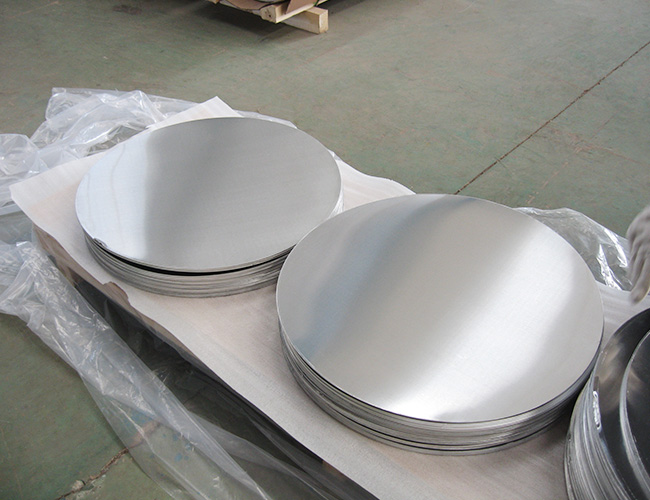

3003 Aluminum Circle

3003 Aluminum Circle

3003 induction Aluminum Circle is widely use in cookware, like, fried pans, non-sticky pans, cooking pots, kettles, hard anodize cook wire, pressure cooker and house hold utensils, etc

  • TEL

    +86 13598417520

  • email

    wade@haomeicn.com

  • PDF Download

    PDF Download

Product introduction

AA3003 aluminum circle is also called 3003 aluminum discs,3003 aluminum round sheet,3003 aluminum wafer,is including the 3003 deep drawing aluminium circle.

3003 aluminum circle is one of the 3000 series aluminum alloy and is the most widely used aluminum-manganese alloy. It has excellent formability, high elongation, smooth surface and high reflectivity. Commonly used in the production of deep-drawn pots, pressure cookers, rice cookers, etc.

Specification

Grade 3003
Temper O, H12, H14, H16, H18, H19, H24, H26, etc
Diameter 80mm-1000mm
Width 0.13mm-6.5mm
Size Size can be produced as per clients requirement
Delivery Time Ready stock 7-10 days
MOQ 1 ton.
Sample Free
Loading Port Qingdao Port, Tianjin Port, Shanghai port.
Price Terms FOB, CIF, CFR, CNF, etc.
Quality Control Mill Test Certification is supplied with shipment. Third Party Inspection is acceptable.

Product Properties

Chemical Elements Si Fe Cu Mn Zn Others Al
Content (max%) 0.6 0.7 0.2 1.3 0.1 0.15 96.7 – 99.5

Mechanical Properties

Tensile Strength 130 MPa – 210 MPa
Yield Strength 55 MPa – 170 MPa
Elongation 20% – 30%
Modulus of Elasticity 69 GPa
Poisson’s Ratio 0.33
Hardness Brinell (HB) 40 – 70

Physical Properties

Density 2.70g/cm3
Melting Point  660 °C
Thermal Expansion 23.1 x 10^-6 m/m·K
Modulus of Elasticity 69 GPa
Thermal Conductivity 237 W/m·K
Electrical Resistivity 2.82 x 10^-8 Ω·m

Applications

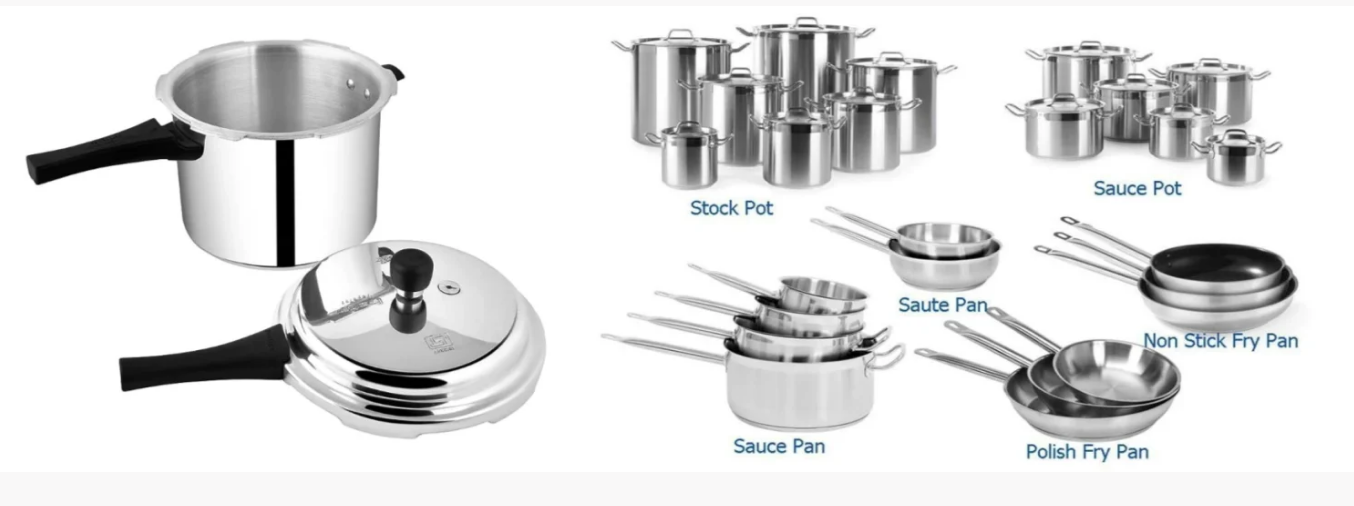

3003 Aluminum circle is used in the electrical, heat preservation, mechanical manufacturing, automotive, aerospace, military industry, mold, construction, printing and other industries, such as kitchen supplies, such as titanium, pressure cookers and hardware items such as chimney, water heater etc.

Now, it is mainly used for capacitor case, aluminum pots, aluminum cans/ bottles, aluminum bowl, electric rice cooker bladder, the road sign, aluminum drum, aluminum lamp cover, electric kettle and so on. aluminum circle for cookwares, aluminum circle for crafts.

3003 Aluminum Circle

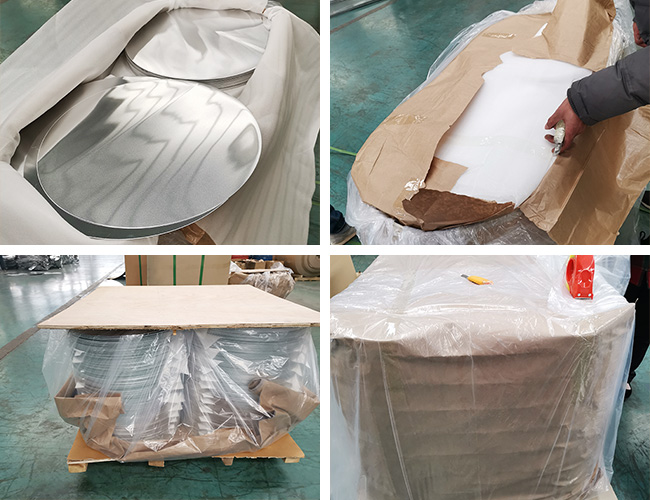

Packaging

Wood pallet packaging, in rolls or panels, waterproof or on wooden pallets. The packaging process involves placing desiccants into pallets, wrapping with transparent plastic film, followed by kraft paper and plastic film layers, and finally securing with straps.

3003 Aluminum Circle
